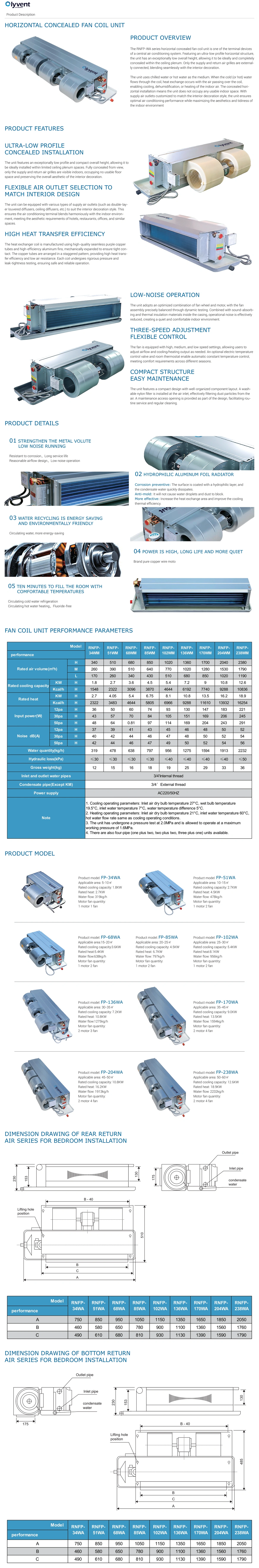

Horizontal concealed fan coil unit

PERFORMANCE PARAMETER
model performance			FP-34	FP-51	FP-68	FP-85	FP-102R	FP-136	FP-170	FP-204	FP-238
airflow (m³/h)		H	340	510	680	850	1020	1360	1700	2040	2380
		M	260	390	510	640	770	1020	1280	1530	1790
		L	170	260	340	430	510	680	850	1020	1190
Rated cooling capacity	KW	H	1.8	2.7	3.6	4.5	5.4	7.2	9.0	10.8	12.6
	Kcal/h	H	1548	2322	3096	3870	4644	6192	7740	9288	10836
Rated heat capacity	KW	H	2.7	4.05	5.4	6.75	8.1	10.8	13.5	16.2	18.9
	Kcal/h	H	2322	3483	4644	5805	6966	9288	11610	13932	16254
Input Power (W)	12pa	H	36	50	60	74	93	130	147	183	221
	30pa	H	43	57	70	84	105	151	169	206	245
	50pa	H	48	64	.81	97	114	169	204	243	291
noise dB(A)	12pa	H	37	39	41	43	45	46	48	50	52
	30pa	H	40	42	44	46	47	48	50	52	54
	50pa	H	42	44	46	47	49	50	52	54	56
Water flow(kg/h)			319	478	638	797	956	1275	1594	1913	2232
Water pressure loss(kPa)			≤30	≤30	≤30	≤30	≤40	≤40	≤40	≤40	≤50
Gross Weight (kg)	No air box		12	15	16	18	19	25	29	33	36
	Air box		14	17	19	21	23	30	34	38	42
Inlet and outlet pipes			ZG 3/4″
Condensate pipe			ZG 3/4″
Power supply			AC220/50HZ
Remark			1.Cooling:Inletair temperature DB 27℃,WB 19.5℃:Chlled water inlet/outlet temp.7℃/12℃. 2.Heating:Inlet airtemperature DB 21℃,heating water inlet temperature 60℃. 3.The unit has passed the 2.0MPa pressure test and the maximum allowable working pressure is 1.6MPa. 4.There are also four control units.
